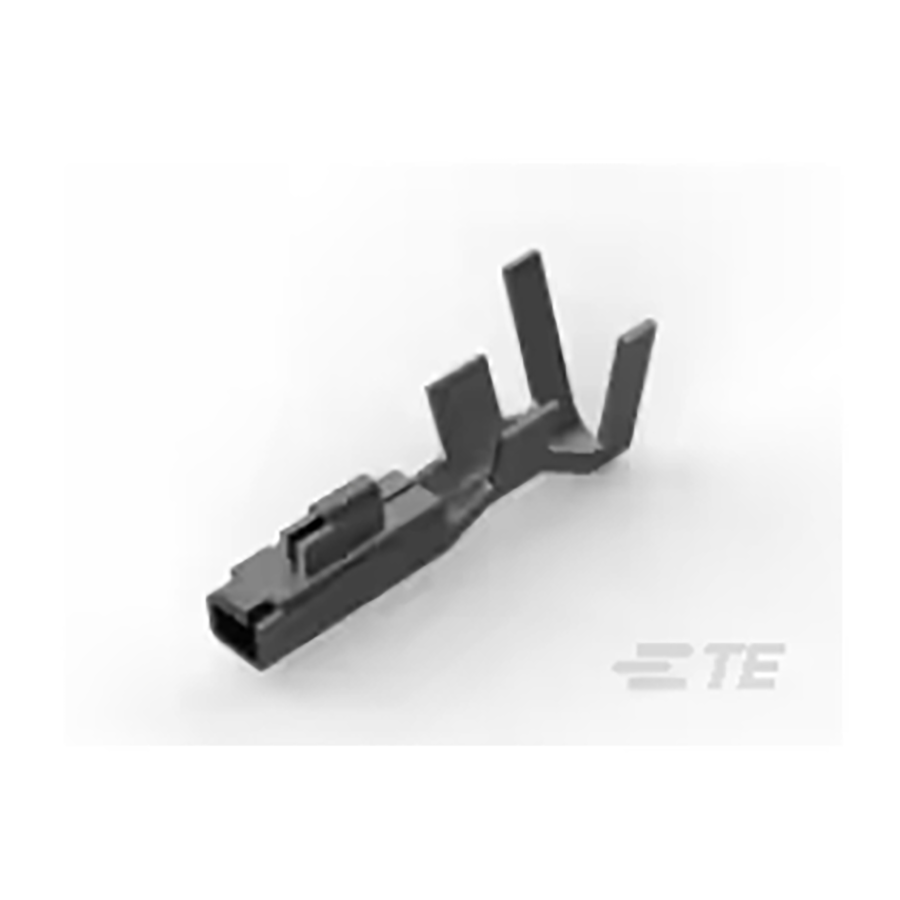

175152-1
Manufacturer:
TE Connectivity
Mfr.Part #:
175152-1
Datasheet:
Description:
Power Connectors Cable Current Rating:12 A Voltage Rating:600 V Receptacle Receptacle
| Parameter | Value |
|---|---|
| Length | 12.25 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 5.2 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 4.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Pre-Tin |
| Current Rating | 12 A |
| Max Current Rating | 12 A |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| Shielding | Unshielded |
| Number of Contacts | |
| ELV | Compliant |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 20 AWG to 16 AWG |
| Number of Positions | |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Current Rating | 12 A |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 3.302 mm |
| Plating Thickness | 800 nm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| IP Rating(Ingress Protection) | |
| Termination Style | Crimp |
| Contact Material(Contact Finish) | Copper Alloy |
Stock: 64272
Distributors
pcbx
pcbxUnit Price$0.21396
Ext.Price$0.21396
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21396 | $0.21396 |
| 10 | $0.10698 | $1.06980 |
| 50 | $0.08229 | $4.11450 |
| 100 | $0.06330 | $6.33000 |
| 500 | $0.04869 | $24.34500 |
| 1000 | $0.03745 | $37.45000 |
| 3000 | $0.02881 | $86.43000 |
| 5000 | $0.02629 | $131.45000 |
| 10000 | $0.02399 | $239.90000 |
| 30000 | $0.02189 | $656.70000 |
